– Battery indicator panel
– Easy to read control panel
– Built-in front & mono back suspension
– Comfortable 19” x 17” captain seat with 360° swivel
– Ergonomic footrest design with spacious foot room
– 11” pneumatic wheels
– ABS moulded basket
– Width adjustable contour armrest

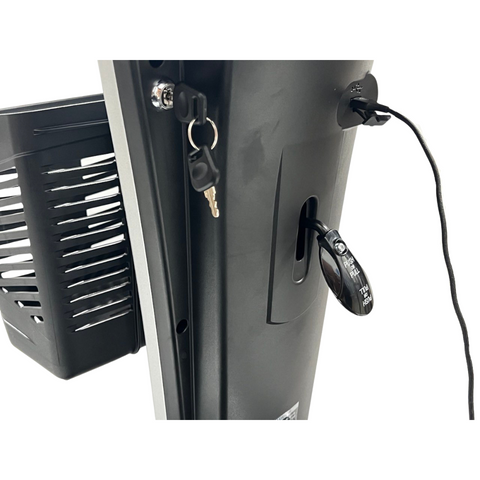

– Charging port on tiller
– Front and rear headlights
– Rear view mirrors
– 75AH electric batteries (range: 50km)
– Reverse sound
– Comes with safety belt
– Left hand handbrake

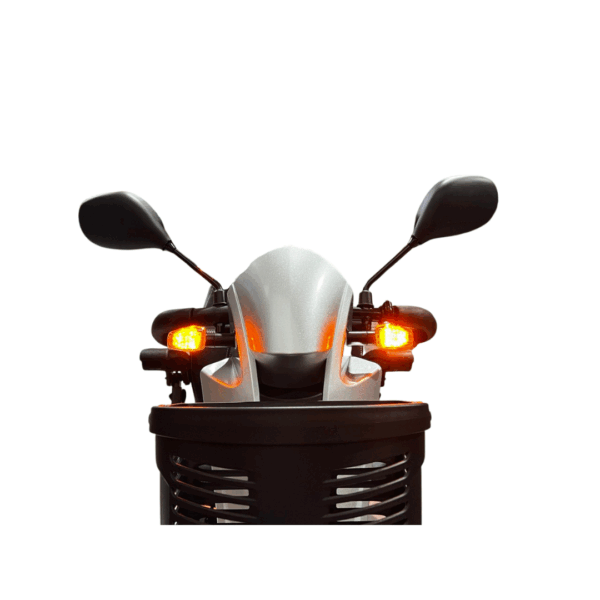

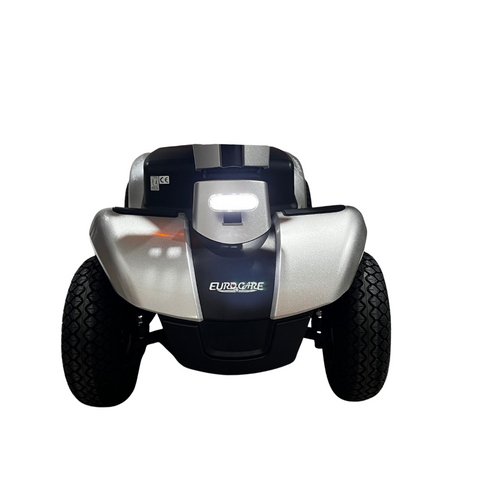

– Full lighting system
Optional Accessories
–
–
–
Specifications
|
Maximum Weight Capacity: |
160kg (352 lbs) |
|
Drive Wheels: |
Rear |
|
Maximum Speed: |
Up to 6 km/h |
|
Operating Range: |
50km (31miles) |
|
Ground Clearance to Transaxle/Motor:Â |
2.8″ (7cm) |
|
Turning Radius: |
55″ (139cm) |
|
Climbing Angle:Â |
8° |
|
Batteries Type: |
2 x 12V 75AH |
|
Freewheel Mode: |
Yes |
|
Electronic Speed Control: |
Yes |
|
Electro-Mechanical Brakes: |
Yes |
|
Charger: |
5A, Off board |
|
Controller: |
120Amp |
|
Dimensions |
 |
|
Overall Length: |
52″ (132.1cm) |
|
Overall Width: |
26.3″ (67cm) |
|
Number of Seat Height Positions: |
3 |
|
Height of Increments: |
1″ |
|
Tyres |
Pneumatic |
|
Front: |
11″ |
|
Rear: |
11″ |
|
Rear anti-tippers: |
2″ |
|
Standard Seating |
Captain Style |
|
Width x Depth: |
19″ x 17″ (48.3cm x 43.2cm) |
|
Seat Back Height |
25″ (63.5cm) |
|
Floor to Seat Height: |
26″ – 28″ (66 – 71cm) |
|
Floor Board to Seat Height: |
18.5″ – 20.5″ (47 – 52cm) |
|
Total Weight of Scooter: |
76.5kg |
|
Weight of Seat: |
18.3kg |
|
Weight of Base: |
58.2kg |
|
Standard Colour: |
Silver |
|
Warranty Period: |
12 months for frame, motor & controller. 6 months for batteries. Against manufacturing defects. |
