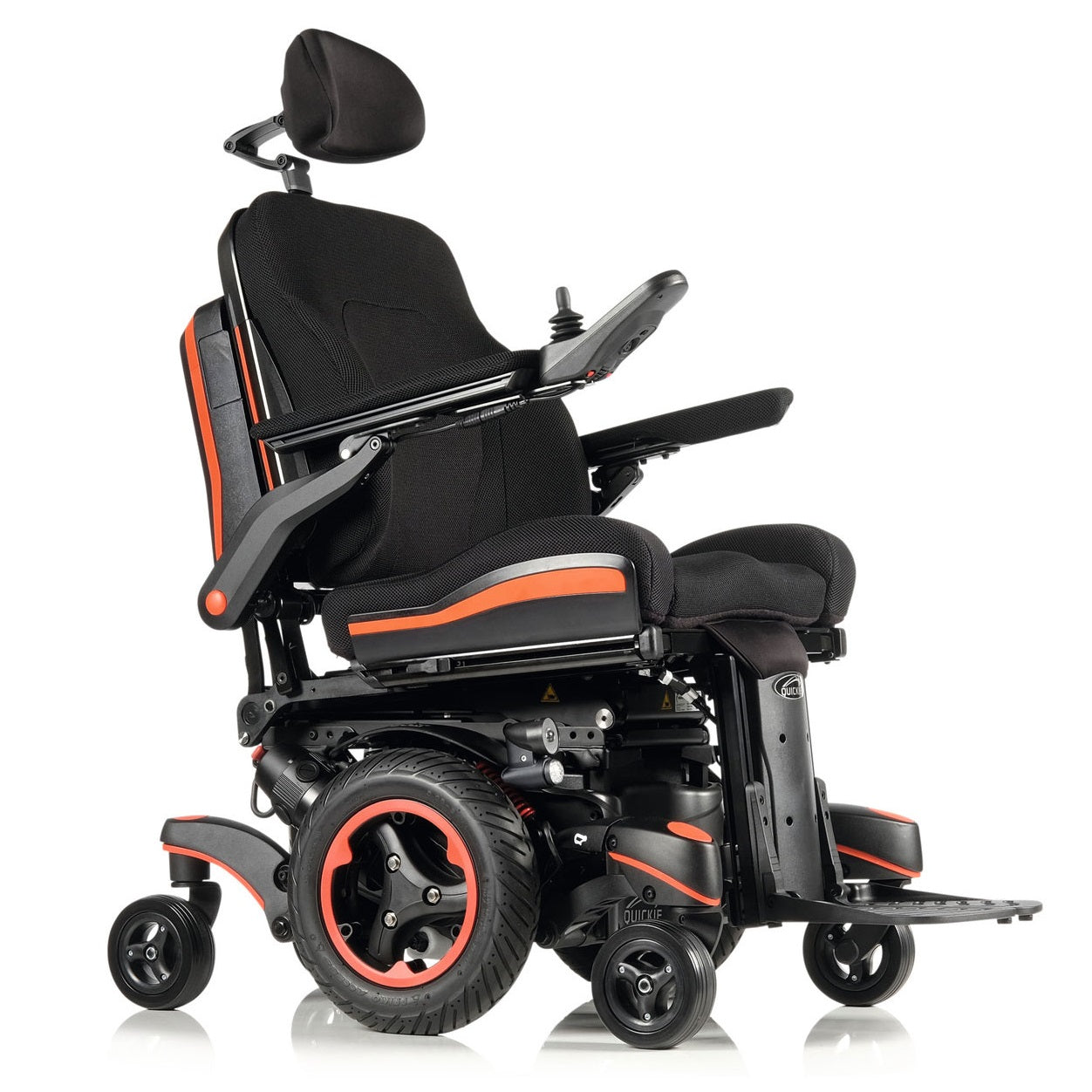

The QUICKIE Q700 M Series power wheelchair combines function and luxury for a unique driving experience. Make your day-to-day a thrill with the Q700 M Series’ SpiderTrac® 2.0 Suspension, Biometric Repositioning, reliable 4-pole motors, and PG Drives electronics.
The Q700 M mid-wheel drive base sets the bar for power wheelchair technology inside and out. Travel further with its superior drive performance and feel secure over challenging terrain with SpiderTrac 2.0 suspension and its independent movement of all six wheels. It’s a driving experience like never before. All Q700 M bases come with Occupied Transit tie-down brackets as standard, no charge.
The optional SureTrac® System automatically detects and corrects the smallest deviation from your input direction. By providing a pinpoint accurate drive, it’ll reduce the number of physical or cognitive actions required to keep your power wheelchair on-track, making for a less-demanding drive (especially if using special controls).
Turning on its own axis, enjoy intuitive driving and excellent maneuverability in tight compact spaces with its narrow 25″ base and a 23.5″ turning radius. Also, easily roll under tables and access wheelchair adaptive vehicles (WAVs) with a low seat height from just 17″.
*Please read the owner’s manual for safe operating instructions.
Style: it’s a personal thing. That’s why you have a choice of six vibrant color inlays to suit your personality. With a matte black chassis finish and tailored upholstery, it’s a power wheelchair that provides a truly sleek and minimalist silhouette from every angle. Inspired by its design but want something extra? Our team can tailor your power wheelchair into a striking expression of you. Why not take it for a spin and experience style in motion?
SEDEO ERGO
SEDEO ERGO – INTELLIGENT SEATING
It’s the first-class seat that’s designed specifically to fit you. The SEDEO ERGO with patented Biometric Repositioning is more effective than any other seating system when it comes to independent repositioning throughout the day.
ELEVATE AND DRIVE WITH C-ME

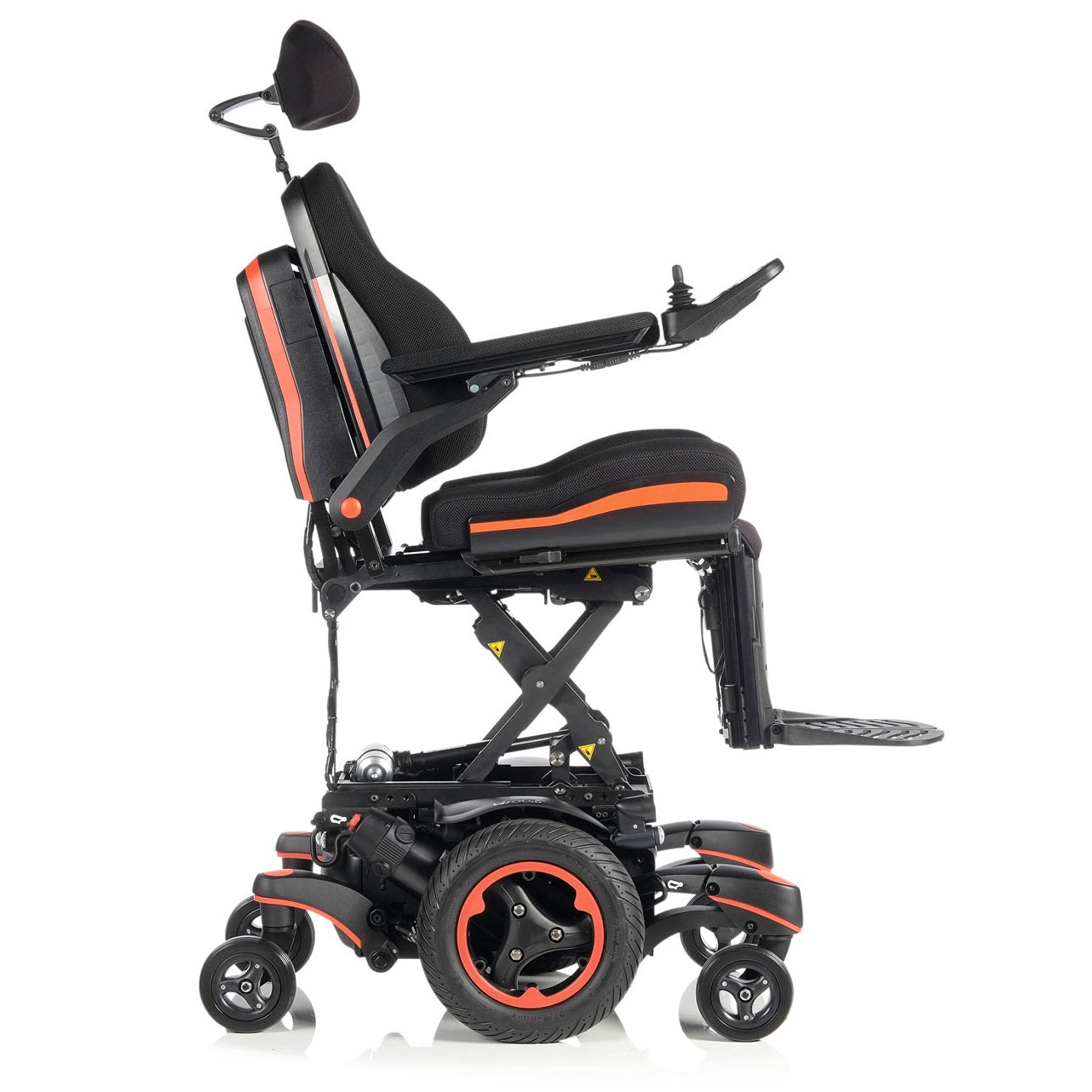

No more waiting around or driving at reduced speed when elevated. C-Me® enables you to elevate up to 12″ while traveling up to 3 mph (weight limitations may apply). You can lift or descend at the touch of a button with no need to stop while transitioning. Just rise up and go at the same time!
ADJUSTABLE TO FIT YOU
The premium headrest (1) can easily be adjusted or removed. All seat widths and depths (2) are infinitely adjustable with just one tool. Also, the seat and backrest (3) width can be adjusted independently of each other. Even the armrest height and angle (4) are simple to adjust, too.
ANTI-SHEAR BACKREST

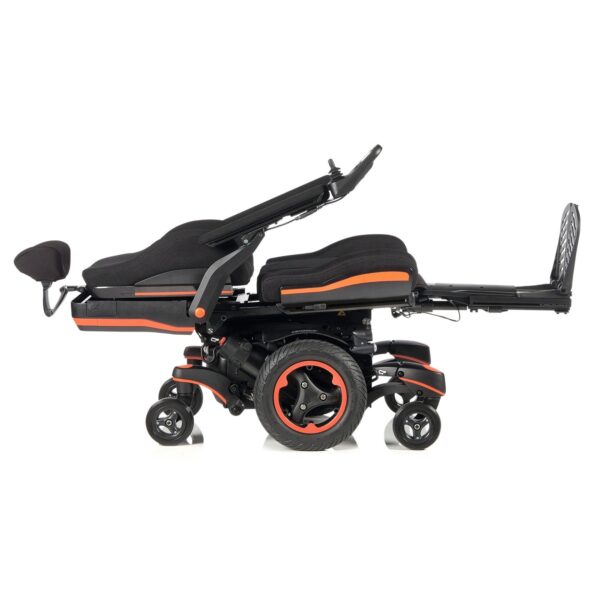

Transitioning in and out of recline doesn’t need to be uncomfortable. The SEDEO ERGO’s power recline is supported by 7″ of anti-shear to better maintain the positioning of the headrest, and even chin control, during recline.
BIOMETRIC REPOSITIONING

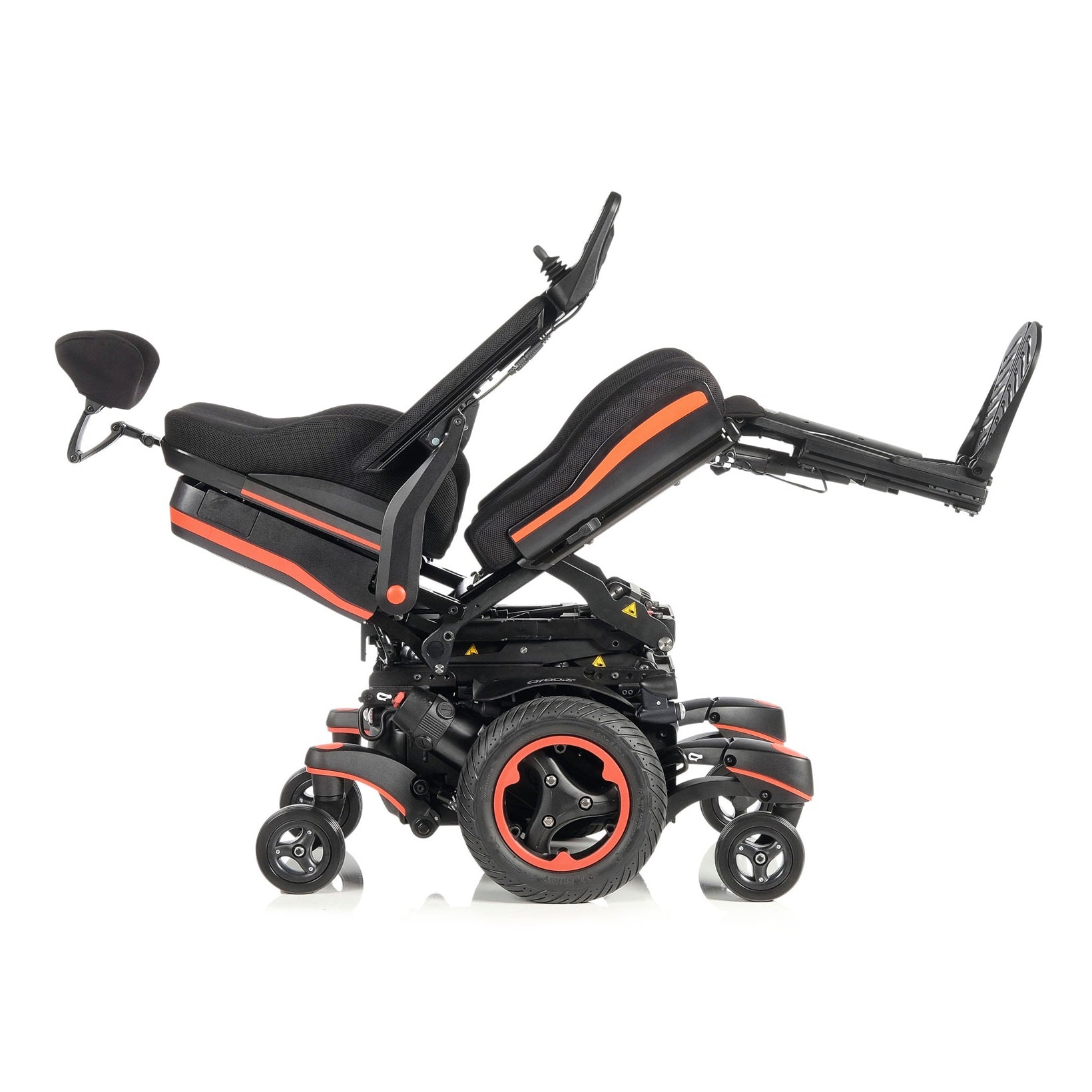

Moving out of a reclined position often requires use of the tilt function to regain your proper seated posture. With the patented Biometric Repositioning, when you move from reclined to seated, the SEDEO ERGO will first pass through an intermediary tilted position, using gravity to realign your pelvis in one smooth, effortless motion.
SEATING SYSTEM FOR EASY TRANSFER
The Q700 M’s seat cushion is divided into three elements. The two thigh bolster cushions can be swung out and lifted off, ensuring a comfortable transfer. The center seat cushion can also be substituted for a .
PRESSURE RELIEF REMINDERS
Your Q700 M can also provide pressure relief reminders to help remind you when it’s time to change your seated position. Using the Remote Seating app, reports are created and can be sent to your clinician to review.
90° CENTERMOUNT FOOTREST
The new centermount footrest gives a true 90° knee angle in seated position. Plus, the footplate can go all the way to the ground.
Specifications
| Q700 M | No Power Seating Options | Single Power Seating Options | Multi Power Seating Options |
| HCPCS codes | Group 3 Standard Duty – K0848 Group 3 Heavy Duty – K0850 Group 4 Standard Duty – K0868 |
Group 3 Standard Duty – K0856 Group 3 Heavy Duty – K0858 Group 4 Standard Duty – K0877 |
Group 3 Standard Duty – K0861 Group 3 Heavy Duty – K0862 Group 4 Standard Duty – K0884 |
| Max. user weight | 300 lbs* (350 lbs for HD) *C-Me at 3 mph has a max. user weight of 250 lbs. |
||
| Seat width | 16″ to 22″ | ||
| Seat depth | 16″ to 22″ Note: Back cushion can cause 2″ loss of effective depth. |
||
| Seat-to-floor height | 16.5″ to 19″ | ||
| Backrest height | 21″ to 30″ | ||
| Total width | 25″ | ||
| Total length | 36.1″ | ||
| Turning radius | 23.5″ | ||
| Seat memory functions | Seated, Pressure Relief, Supine, Feet Above Heart, Transfer, C-Me | ||
| Max. speed | 6 mph (standard), 5 mph (optional), 8 mph (optional) | ||
| Battery size | Group 34 or Group 24 | ||
| Overall weight (SEDEO PRO, with batteries) | Starting at 328 lbs. | Starting at 352 lbs. | Starting at 366 lbs. |
| Drive wheel position | Mid | ||
| Ground clearance | 3″ | ||
| Wheel options | 14″ drive wheels; 6″ casters | ||
| Max. range | up to 18 miles (w/Group 24 batteries and 6 mph motors) | ||
| Transit | ISO 7176-19:2008 Transit Approved | ||
| Warranty | 5y Frame 1y Components 1y Battery |
||
| Country of Origin | USA | ||
